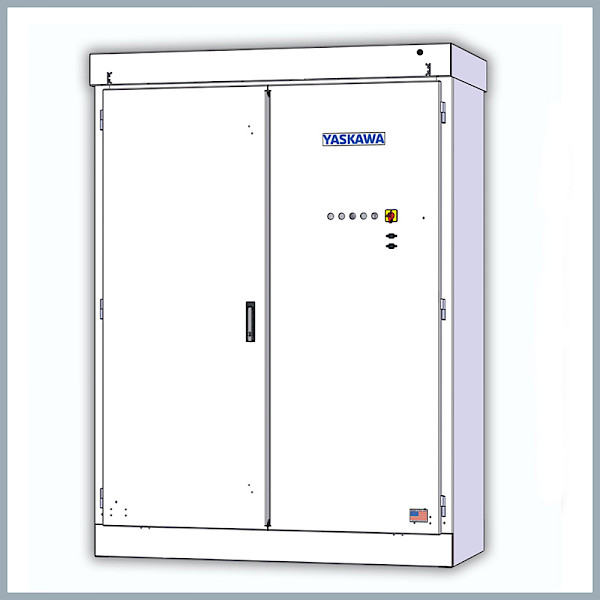

SOLECTRIA XGI 1500-1MW Series Inverters
SOLECTRIA XGI 1500-1MW MODULAR CENTRAL INVERTERS
Yaskawa Solectria Solar is pleased to introduce our new, powerful, scalable XGI 1500 Modular Central inverters for utility-scale projects of any size. The XGI 1500-1MW Series Inverters bring together the very best from Yaskawa Solectria Solar: proven technology with US-based design, engineering, and manufacturing. With features for storage integration, and focus on utility-scale projects, XGI 1500-1MW Series Inverters are a breakthrough in flexibility and scalability, which lie at the heart of the Modular Central inverter concept. XGI 1500-1MW Series Inverters build on the demonstrated success of the XGI 1500-166 series and XGI 1500-250 series utility-scale inverters, with advancements in key areas. Their negative-grounded DC input solve the PID issue for all PV modules. Yaskawa Solectria Solar also offers the XGI 1500-1MW Series Inverters in factory-assembled multi-MW MegaSkid™. By combining three, four, or five XGI 1500 Modular Central inverters, MegaSkid™ are uniquely available in 40 different power ratings between 2.25 MW and 5 MW and offer the flexibility to use any number of the XGI 1500-1MW Series Inverters with storage, either DC-coupled or AC-coupled.
XGI 1500-1MW Features
- Six Models: 1 MW, 0.99 MW, 0.85 MW, 0.75 MW, 0.5 MW, 0.498 MW
- Unique and flexible utility-scale 1500 VDC, 3-phase 600 VAC inverters
- Four models: 125kW/125kVA, 125kW/150kVA, 150kW/166kVA, 166kW/166kVA
- Scalable for projects of any size
- Factory-integrated MegaSkid™ assemblies with 40 different power ratings from 2.25 MW to 5 MW
- Storage-ready for both DC-coupled and AC-coupled energy storage systems
PV Input
- Four PV source circuit terminals, each with 800 A fuse and 600 A disconnect switch
- Up to 8 PV Source Circuit inputs, 2 per fused terminal
- DC grounded, for PID mitigation for all PV modules
MegaSkid™ Assemblies
Combine three, four, or five XGI 1500-1MW Series Inverters, pre-assembled to a supporting skid, prewired and tested, with AC Combiner and transformer (optional), and select from 40 different power ratings from 2.25 MW to 5 MW.
Storage Configurations
- Designed for both DC-Coupled and AC-Coupled energy storage systems
- Equipped with input terminals and overcurrent protection for battery subsystem or DC/DC converter connections
- Provides bi-directional power flow to charge storage system from the grid
Made in the USA
- Buy American Act (BAA) compliant
- World-class production facilities in Franklin, WI
- Schedule your factory visit by contacting sales@solectria.com
XGI 1500-1MW Options
- Extended warranty
- String combiners for distributed or centralized system
- Web-based monitoring
Safety Listings & Certifications
- Certification Agency: TUV
- FCC Part 15
- IEEE 1547
- UL 1699B (-A Models)
- UL 1741
- UL 1998
- UL1741SB, Rule 21
